A CNC linear slide is a key component in CNC machines that enables smooth, accurate, and stable linear motion. It is widely used in CNC routers, milling machines, laser cutters, and industrial automation systems where precision and repeatability are essential.
This guide explains everything you need to know about CNC linear slide systems, including how they work, their benefits, types, applications, and how to choose the right system.
What Is a CNC Linear Slide?

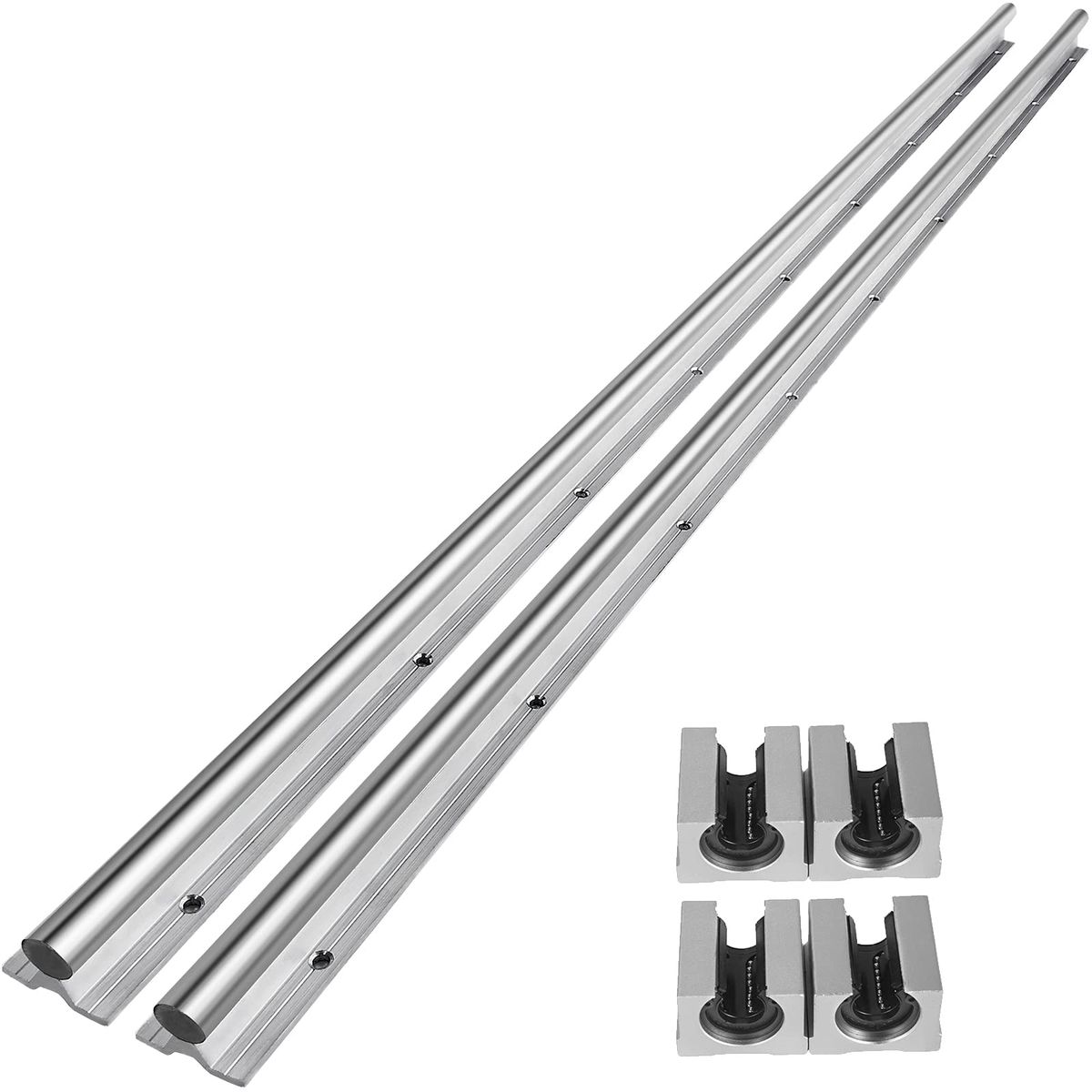

A CNC linear slide is a mechanical motion system designed to guide CNC machine axes along a straight path with minimal friction and high precision.
A typical system includes:
- A hardened linear guide rail
- A carriage slide block
- Rolling elements such as steel balls or rollers
- Lubrication and sealing systems
These components work together to ensure stable and accurate motion during CNC operations.
How Does a CNC Linear Slide Work?
The working principle of a CNC linear slide is based on rolling contact instead of sliding friction.
Core Components
- Guide Rail: Provides a rigid and precise motion path
- Slide Block (Carriage): Moves along the rail
- Rolling Bearings: Reduce friction and support load
- Seals: Protect against dust and chips
- Lubrication System: Ensures smooth operation
Working Mechanism
As the CNC axis moves, the carriage slides along the rail while internal rolling elements circulate, enabling smooth, low-resistance, and highly accurate motion.
10 Key Benefits of CNC Linear Slide Systems
1. High Machining Precision
Ensures accurate cutting and positioning.
2. Low Friction Performance
Reduces resistance for smoother motion.
3. High Load Capacity
Supports heavy CNC machining operations.
4. Excellent Stability
Maintains accuracy under cutting forces.
5. Smooth Operation
Reduces vibration during machining.
6. High Speed Capability
Suitable for fast CNC movements.
7. Long Service Life
Durable materials ensure long-term use.
8. Easy Integration
Standardized design fits most CNC machines.
9. Energy Efficiency
Lower friction reduces motor load.
10. Improved Surface Finish
Stable motion improves machining quality.
Types of CNC Linear Slide Systems
Different machines require different CNC linear slide configurations.
Ball-Type CNC Linear Slide
- High precision and speed
- Common in CNC routers and engraving machines
Roller-Type CNC Linear Slide
- Higher rigidity and load capacity
- Ideal for heavy-duty milling machines
Miniature CNC Linear Slide
- Compact design
- Used in small precision machines
Heavy Duty CNC Linear Slide
- Designed for industrial machining centers
- Handles high loads and vibration
Applications of CNC Linear Slide
CNC linear slide systems are widely used in modern manufacturing:
- CNC Milling Machines – Precision metal cutting
- CNC Routers – Wood and composite machining
- Laser Cutting Machines – Smooth axis movement
- 3D Printing Systems – Accurate layer positioning
- Industrial Automation – Repetitive motion control
👉 Explore CNC motion solutions here:
https://yhlinear.com/product
How to Choose the Right CNC Linear Slide
Selecting the correct CNC linear slide is critical for machine performance.
Load Requirements
Ensure the system supports machining forces.
Precision Level
Choose high-precision slides for fine machining.
Speed Requirements
Match slide performance with machine speed.
Environmental Conditions
Consider dust, chips, and coolant exposure.
Compatibility
Ensure proper fit with CNC machine structure.
For technical reference:
👉 https://www.hiwin.com/en/products/linear-guideways/

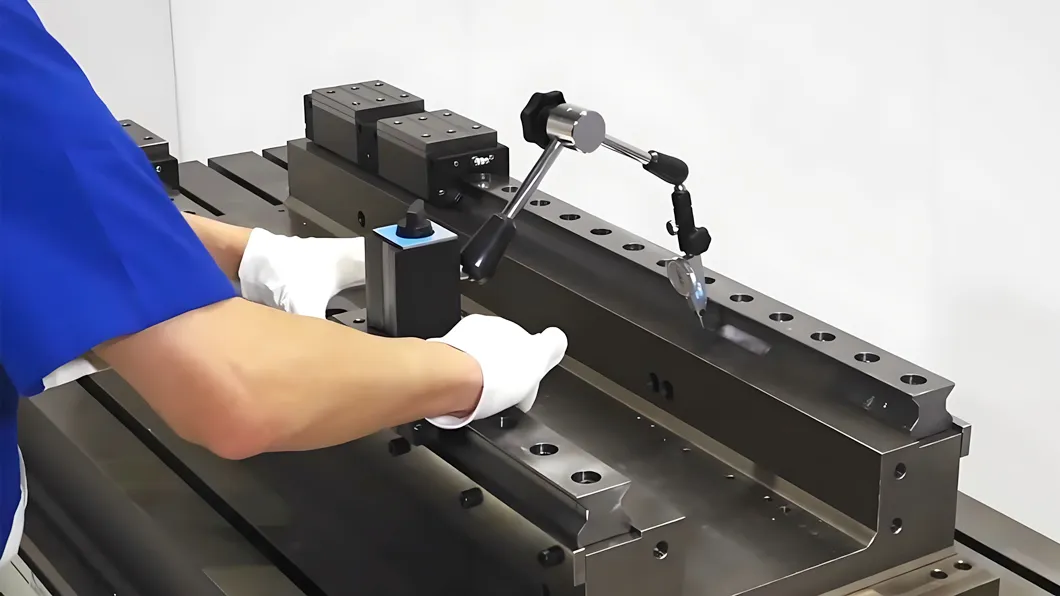

Installation Tips for CNC Linear Slide
Proper installation ensures optimal performance:
- Align rails precisely
- Use flat and rigid mounting surfaces
- Tighten bolts evenly
- Apply proper lubrication before use
Maintenance Best Practices
To extend lifespan of a CNC linear slide:
- Regular lubrication
- Cleaning of chips and dust
- Inspection for wear or misalignment
- Seal replacement when necessary
CNC Linear Slide vs Traditional Slide Systems
| Feature | CNC Linear Slide | Traditional Slide |
|---|---|---|
| Precision | High | Medium |
| Friction | Low | High |
| Speed | High | Moderate |
| Stability | Excellent | Lower |
Future Trends in CNC Linear Slide Technology
The evolution of CNC linear slide systems includes:
- Smart condition monitoring
- Advanced wear-resistant materials
- Industry 4.0 integration
- Higher-speed precision machining systems
FAQs About CNC Linear Slide
1. What is a CNC linear slide used for?
It is used to guide precise linear motion in CNC machines.
2. Why is a CNC linear slide important?
It improves machining accuracy, stability, and smooth movement.
3. Can CNC linear slides handle heavy loads?
Yes, especially roller-type and heavy-duty systems.
4. Do CNC linear slides require maintenance?
Yes, lubrication and cleaning are required.
5. What industries use CNC linear slides?
Manufacturing, woodworking, metalworking, and automation industries.
6. Where can I buy high-quality CNC linear slides?
You can explore reliable products here:
👉 https://yhlinear.com/product
Conclusion
A CNC linear slide is a vital component in modern machining systems, providing precision, stability, and efficiency. Whether used in CNC routers, milling machines, or automation systems, it ensures reliable and accurate performance.
