In modern manufacturing, automation, and CNC machining, achieving precise and reliable movement is essential. At the heart of many linear motion systems is the linear carriage, a critical component that travels along a guide rail while supporting loads and maintaining accurate positioning.
Whether used in CNC routers, industrial robots, packaging equipment, or semiconductor manufacturing systems, a high-quality linear carriage helps ensure smooth motion, reduced friction, and long-term operational reliability.
This comprehensive guide explains everything you need to know about linear carriages, including how they work, their advantages, common types, applications, and how to select the right solution for your project.
What Is a Linear Carriage?
A linear carriage is the moving component of a linear guide system that travels along a guide rail while carrying a load.
A typical linear carriage assembly includes:
- Carriage block
- Recirculating ball bearings or rollers
- Internal raceways
- Lubrication channels
- End seals
- Mounting holes
The carriage works together with the guide rail to create a low-friction, highly accurate motion system.
How Does a Linear Carriage Work?
A linear carriage moves along a guide rail through rolling contact.
Guide Rail
The rail provides:
- Structural support
- Directional guidance
- Precision alignment
Rolling Elements
Most linear carriages use:
- Steel balls
- Cylindrical rollers
These rolling elements circulate inside the carriage and reduce friction.
Load Support
The carriage supports various load types:
- Radial loads
- Axial loads
- Moment loads
This allows the system to maintain stability under demanding operating conditions.
Lubrication System
Lubrication helps:
- Reduce wear
- Improve efficiency
- Extend service life
Protective Seals
Seals prevent contaminants such as:
- Dust
- Debris
- Coolants
- Moisture
from entering the carriage assembly.
12 Key Benefits of a Linear Carriage
1. High Positioning Accuracy
Linear carriages provide precise movement for demanding applications.
2. Smooth Motion
Rolling elements create low-friction travel.
3. Excellent Load Capacity
Supports heavy loads without sacrificing accuracy.
4. High Rigidity
Maintains stability during operation.
5. Reduced Friction
Improves efficiency and reduces energy consumption.
6. Long Service Life
Hardened raceways increase durability.
7. High-Speed Performance
Suitable for fast industrial motion systems.
8. Low Maintenance Requirements
Modern carriage designs minimize wear.
9. Improved Repeatability
Ideal for automation and robotic systems.
10. Reduced Machine Vibration
Enhances product quality and machine performance.
11. Flexible Installation Options
Available in multiple sizes and configurations.
12. Reliable Industrial Performance
Designed for continuous operation in demanding environments.
Types of Linear Carriages
Ball Bearing Linear Carriage
The most common type used in industrial equipment.
Advantages
- Low friction
- High speed
- Excellent precision
Applications
- CNC machinery
- Automation systems
- Packaging equipment
Roller Linear Carriage
Uses cylindrical rollers instead of balls.
Advantages
- Higher load capacity
- Greater rigidity
- Better shock resistance
Applications
- Heavy-duty CNC machines
- Industrial robots
- Manufacturing equipment

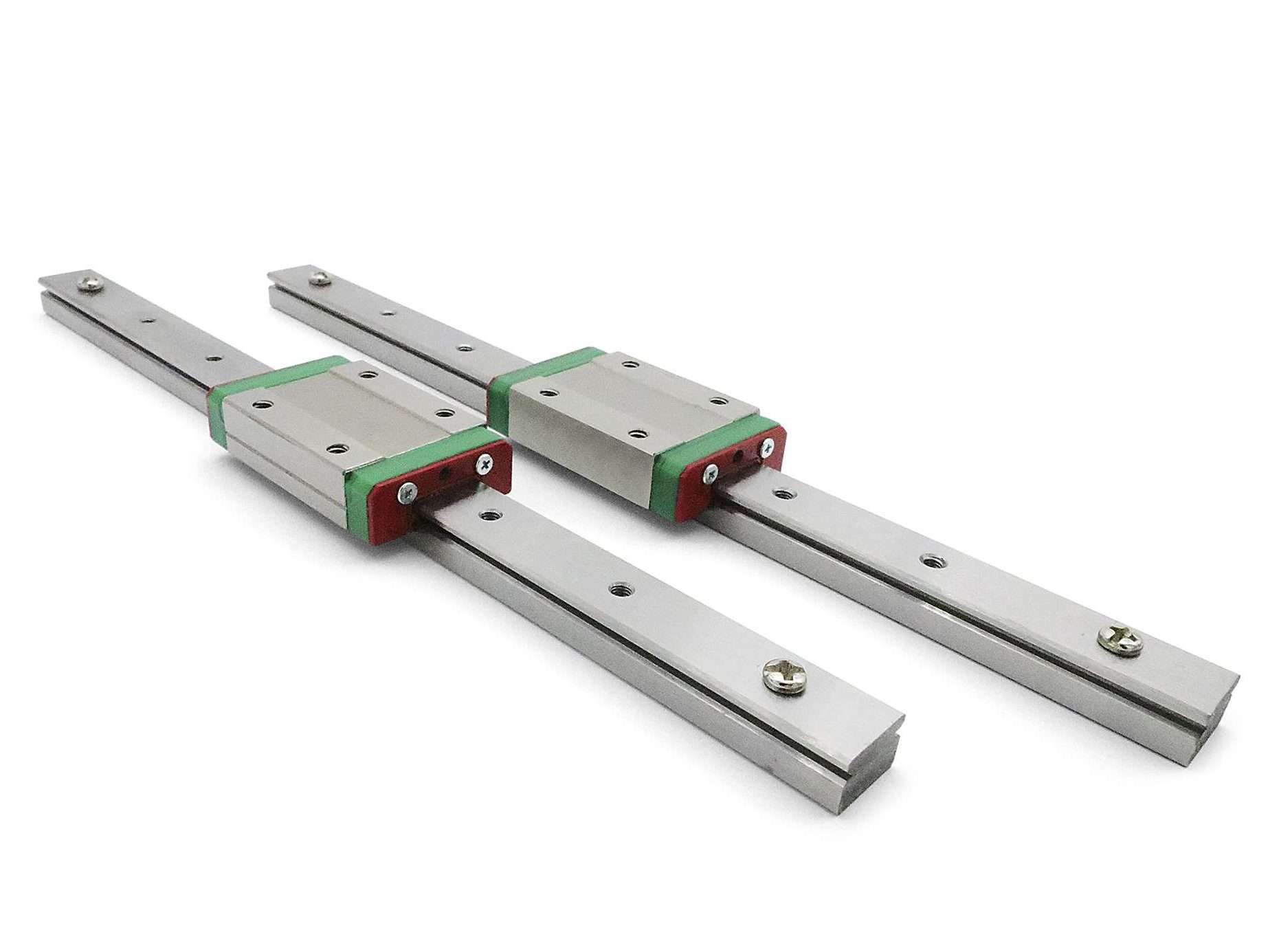

Miniature Linear Carriage
Designed for compact systems.
Applications
- Medical devices
- Electronics manufacturing
- Laboratory equipment
Heavy Duty Linear Carriage
Engineered for demanding industrial applications.
Features
- Larger bearing circuits
- Increased load ratings
- Enhanced durability
Explore industrial-grade solutions:
👉 https://yhlinear.com/product
Applications of Linear Carriages
CNC Machinery
Linear carriages are widely used in:
- CNC milling machines
- CNC routers
- Machining centers
- Laser cutting machines
They ensure smooth and accurate axis movement.
Industrial Automation
Applications include:
- Assembly lines
- Pick-and-place systems
- Packaging equipment
- Material handling systems
Robotics
Robots rely on linear carriages for:
- Precise positioning
- Repeatable movement
- Smooth operation
Semiconductor Manufacturing
Applications require:
Medical Equipment
Used in:
- Diagnostic systems
- Imaging equipment
- Laboratory automation
How to Choose the Right Linear Carriage
Load Requirements
Evaluate:
- Static loads
- Dynamic loads
- Impact loads
Choose a carriage with an appropriate safety factor.
Accuracy Requirements
Different applications require different precision grades.
| Precision Grade | Application |
|---|---|
| Standard | General Automation |
| High | CNC Machinery |
| Precision | Semiconductor Equipment |
| Ultra Precision | Metrology Systems |
Travel Distance
Long travel systems may require:
- Multiple carriages
- Larger rails
- Additional support
Speed Requirements
Consider:
- Maximum velocity
- Acceleration
- Duty cycle
Environmental Conditions
Assess exposure to:
- Dust
- Coolants
- Chemicals
- Moisture
Sealed models may be required.
Installation Best Practices
Use Flat Mounting Surfaces
Proper mounting improves accuracy and service life.
Ensure Correct Rail Alignment
Misalignment can cause:
- Premature wear
- Reduced precision
- Increased friction
Apply Proper Torque
Follow manufacturer installation recommendations.
Lubricate Before Operation
Proper lubrication improves long-term performance.
Maintenance Tips for Linear Carriages
Routine maintenance helps maximize reliability.
Recommended tasks:
- Clean rails regularly
- Inspect carriage blocks
- Reapply lubricant
- Check mounting bolts
- Monitor motion quality
Preventive maintenance reduces downtime and operating costs.
Linear Carriage vs Traditional Sliding Systems
| Feature | Linear Carriage | Sliding System |
|---|---|---|
| Friction | Low | High |
| Precision | Excellent | Moderate |
| Speed | High | Lower |
| Load Capacity | High | Moderate |
| Service Life | Long | Shorter |
Internal Links
Improve SEO and user navigation with related product pages:
Linear Motion Products
👉 https://yhlinear.com/product
Linear Guide Category
👉 https://yhlinear.com/product-category/linear-guide
YH Linear Homepage
Linear Guide Components
👉 https://yhlinear.com/product
These internal links help visitors find relevant products while strengthening topical authority.
External Resources
For additional engineering information:
These manufacturers provide technical references on linear carriage and guide rail technologies.
FAQs About Linear Carriages
What is a linear carriage?
A linear carriage is the moving component of a linear guide system that travels along a rail while supporting loads and maintaining accurate motion.
What are linear carriages used for?
They are commonly used in CNC machinery, robotics, automation equipment, semiconductor manufacturing, and medical devices.
What is the difference between ball and roller carriages?
Ball carriages offer lower friction and higher speeds, while roller carriages provide greater rigidity and load capacity.
Can linear carriages handle heavy loads?
Yes. Heavy-duty and roller-type carriages are specifically designed for demanding industrial applications.
Do linear carriages require maintenance?
Regular lubrication and cleaning are recommended to maximize service life and performance.
Where can I buy industrial-grade linear carriages?
Browse professional motion control solutions here:
👉 https://yhlinear.com/product
Conclusion
A linear carriage is a fundamental component of modern linear motion systems. By providing smooth movement, high accuracy, excellent load capacity, and long-term reliability, linear carriages play a vital role in CNC machinery, robotics, industrial automation, and advanced manufacturing.
