Precision and control are the lifeblood of modern manufacturing, and at the heart of that precision lies a small yet powerful component — the linear guide bearing block. Whether it’s a CNC milling machine, a 3D printer, or a robotic arm, this component ensures smooth, precise, and friction-free motion across linear paths.
In this in-depth guide, we’ll break down everything you need to know about linear guide bearing blocks — from their structure and operation to their applications, maintenance, and future innovations. Let’s explore how this essential piece of technology keeps the world of automation moving seamlessly.
Understanding Linear Guide Bearing Blocks

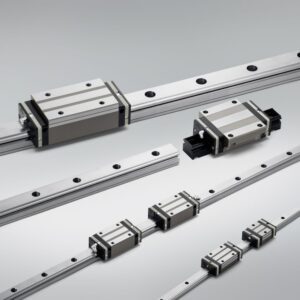

A linear guide bearing block (also called a linear carriage or slider block) is a moving component that slides along a linear rail. It contains recirculating ball bearings or rollers that allow for extremely smooth, precise, and low-friction movement in one direction.
Together, the rail and block form a linear guide system, a foundation of many motion mechanisms.
Essentially, the bearing block acts as the interface between the moving load and the fixed rail, ensuring that movement is controlled, stable, and accurate — even under heavy loads or fast acceleration.
Structure and Components of a Linear Guide Bearing Block
The construction of a linear guide bearing block is a blend of precision engineering and durable materials. Here’s what it typically includes:
Carriage Body (Block Housing): The main frame that holds all the components together, usually made from high-strength steel or aluminum.
Rolling Elements: Either balls or cylindrical rollers that circulate within the block to provide motion with minimal resistance.
Ball Circulation Path: A closed loop that allows the rolling elements to continuously recirculate.
Raceways: Hardened steel tracks that guide the rolling elements within the block.
End Caps: Keep the recirculating elements in place and direct their path.
Seals: Prevent contamination from dust, chips, or moisture.
Grease Nipple or Lubrication Port: Allows easy maintenance and lubrication.
Together, these parts form a compact yet powerful mechanism capable of micrometer-level precision.
Working Principle of a Linear Guide Bearing Block
The operation of a linear guide bearing block is based on rolling contact motion.
As the block moves along the rail, the rolling elements inside roll between the rail and block raceways, drastically reducing friction compared to traditional sliding mechanisms.
Once a rolling element reaches one end of the block, it recirculates through an internal return channel and re-enters the contact path, creating continuous, frictionless motion.
This design ensures:
High-speed operation
Minimal wear
Consistent precision
In short, the linear guide bearing block transforms rotary energy from motors into ultra-smooth linear displacement.
Types of Linear Guide Bearing Blocks
There are several types of bearing blocks available, each suited to different performance needs:
Standard Blocks: General-purpose, suitable for moderate load and speed.
Wide Blocks: Offer increased stability for wider load distribution.
Flanged Blocks: Include a flange for easy mounting from the top or bottom.
Compact Blocks: Designed for space-limited systems.
Roller Blocks: Use cylindrical rollers for higher rigidity and load-bearing capacity.
Each variant balances space, stiffness, and load requirements differently, allowing engineers to select the perfect fit for their system.
Linear Guide Bearing Block vs Linear Bearing
| Feature | Linear Guide Bearing Block | Linear Bearing |
|---|---|---|
| Motion Path | Moves on a rail | Slides on a shaft |
| Rolling Element | Balls or rollers | Balls or bushings |
| Accuracy | Extremely high | Moderate |
| Load Capacity | Very high | Limited |
| Friction | Very low | Low |
| Mounting Type | Rail-based | Shaft-based |
| Applications | CNC, robotics, automation | Light equipment, lab devices |
Linear guide bearing blocks outperform conventional bearings when precision, rigidity, and durability are essential.
Materials and Construction Quality
The performance of a linear guide bearing block largely depends on the materials used:
Carriage Housing: Hardened steel or aluminum alloy for strength and corrosion resistance.
Rolling Elements: Chrome steel or stainless steel for durability.
Raceways: Induction-hardened and ground for high precision.
Seals: Synthetic rubber or polyurethane to block contaminants.
Advanced manufacturing techniques like precision grinding and heat treatment ensure perfect alignment, smooth movement, and long service life.
Load Directions and Capacities
Linear guide bearing blocks can withstand loads in multiple directions due to their symmetrical raceway design.
They are capable of supporting:
Radial Loads: Perpendicular to the rail.
Reverse Radial Loads: In the opposite direction of the main force.
Lateral Loads: From the sides (left or right).
This four-direction load support ensures the system remains stable even under unbalanced forces or multi-axis motion.
Preload and Rigidity in Bearing Blocks
Preload is the internal tension applied to the rolling elements within the block to remove any clearance between the block and rail.
A proper preload ensures:
Higher rigidity
Reduced vibration
Better positioning accuracy
However, excessive preload can increase friction and reduce lifespan. Engineers select preload levels — light, medium, or heavy — based on system dynamics and desired stiffness.
Lubrication and Maintenance of Linear Guide Bearing Blocks
Like all precision components, proper lubrication is crucial for long-term performance. It minimizes friction, prevents rust, and extends service life.
Best practices include:
Using manufacturer-recommended grease or oil.
Lubricating through the built-in grease nipple.
Checking seals regularly for contamination.
Reapplying lubricant after 500–1000 hours of operation, depending on conditions.
For low-maintenance applications, self-lubricating blocks with integrated reservoirs are also available.
Installation and Alignment Guidelines
Installing a linear guide bearing block requires precision — even minor misalignments can lead to vibration, wear, or noise.
Installation steps:
Ensure the mounting surface is flat and clean.
Align rails parallel to each other (within microns).
Tighten mounting bolts gradually in sequence.
Slide the block gently to check for smooth motion.
Use dowel pins for consistent positioning.
Proper alignment guarantees smooth movement and maximum lifespan of both block and rail.
Common Problems and Their Solutions
| Problem | Possible Cause | Solution |
|---|---|---|
| Uneven Motion | Misalignment or debris | Realign rail, clean surfaces |
| Noise During Operation | Insufficient lubrication | Reapply grease or oil |
| Vibration | Excess preload | Adjust preload or replace block |
| Excessive Wear | Contamination or overload | Clean environment, reduce load |
| Short Lifespan | Poor installation | Ensure correct torque and alignment |
Routine inspections prevent these issues and maintain high operational accuracy.
Applications of Linear Guide Bearing Blocks
The versatility and precision of linear guide bearing blocks make them indispensable in countless industries:
CNC Machine Tools: Precise cutting, drilling, and milling.
3D Printers: Smooth layer deposition and accurate head movement.
Robotics: Controlled linear positioning of robotic arms.
Medical Equipment: Scanning and imaging accuracy.
Packaging Systems: Fast and repeatable linear transfers.
Semiconductor Manufacturing: Nanometer-level precision.
Their ability to handle both heavy-duty loads and delicate movements makes them a core element of motion control systems.
Performance Advantages
High Rigidity and Load Capacity
Smooth, Frictionless Motion
Long Operating Life
Compact and Lightweight Design
Minimal Maintenance
Low Noise and Vibration
Excellent Repeatability and Accuracy
These benefits make linear guide bearing blocks the go-to solution for precision engineers worldwide.
Environmental Protection Features
To ensure durability, bearing blocks often include protective features:
End Seals: Block dust and chips.
Scrapers: Remove debris from rail surfaces.
Bellows Covers: Shield exposed rails in machining environments.
Corrosion-Resistant Coatings: Protect against rust.
Such features are vital in environments like metalworking, where dust and fluid exposure are frequent.
Selecting the Right Linear Guide Bearing Block
When choosing a block, consider:
Load type and magnitude
Travel speed and acceleration
Required precision
Operating environment
Space and mounting conditions
Maintenance access
Matching these factors ensures optimal performance and system efficiency.
Innovations in Linear Guide Bearing Block Design
Recent advancements in motion technology have revolutionized linear blocks:
Caged Ball Technology: Prevents ball collisions and reduces noise.
Self-Lubricating Systems: Extend maintenance intervals.
Compact High-Rigidity Designs: Allow lighter machinery with higher strength.
Sensor Integration: Enables condition monitoring for predictive maintenance.
These innovations enhance reliability, performance, and sustainability across industrial sectors.
Future Trends in Linear Motion Systems
Looking ahead, linear guide bearing blocks are evolving to meet Industry 5.0 demands:
Smart Blocks with IoT Sensors for real-time diagnostics.
Magnetic Levitation Systems for contactless linear motion.
Eco-friendly Lubrication Materials reducing environmental impact.
Lightweight Composites to improve speed and efficiency.
The next generation of linear motion will be smarter, faster, and more energy-efficient than ever before.
Linear Guide Bearing Block
The linear guide bearing block is more than just a sliding component — it’s a precision instrument that defines motion accuracy, efficiency, and stability. Its design enables machines to operate smoothly under intense conditions, delivering results that meet the highest industrial standards.
From delicate surgical robots to robust milling centers, this small yet mighty component is what keeps linear motion precise, reliable, and unstoppable.
Frequently Asked Questions
What is a linear guide bearing block?
It’s the moving component of a linear guide system that slides along a rail using rolling elements for smooth, low-friction motion.
What is the difference between a linear block and linear bearing?
Linear blocks move along a rail system, while linear bearings typically slide on a round shaft. Blocks are more precise and rigid.
How do I maintain a linear guide block?
Keep it lubricated, clean the rails regularly, and inspect seals and fasteners for wear.
Can linear blocks handle heavy loads?
Yes, especially roller-based blocks which offer superior rigidity and load-bearing capacity.
What materials are used in linear guide blocks?
Mostly high-strength steel, chrome steel, and aluminum alloys for corrosion resistance and strength.
How long do linear guide blocks last?
With proper care and lubrication, they can last tens of thousands of operating hours, depending on the application.
Conclusion
The linear guide bearing block represents the perfect fusion of engineering precision and practical functionality. Its unmatched accuracy, rigidity, and durability make it indispensable in industries striving for perfection.
When properly selected, installed, and maintained, it ensures machines move with grace, speed, and precision — turning complex automation into seamless motion.
Simply put, it’s not just a component; it’s the cornerstone of modern linear motion technology.
