A linear motion guide is a critical component in modern industrial automation and precision machinery. It provides smooth, accurate, and low-friction movement along a straight path, making it essential for CNC machines, robotics, semiconductor equipment, and manufacturing systems.
In this guide, you’ll learn everything about linear motion guide systems, including how they work, their benefits, types, applications, and how to choose the right solution.

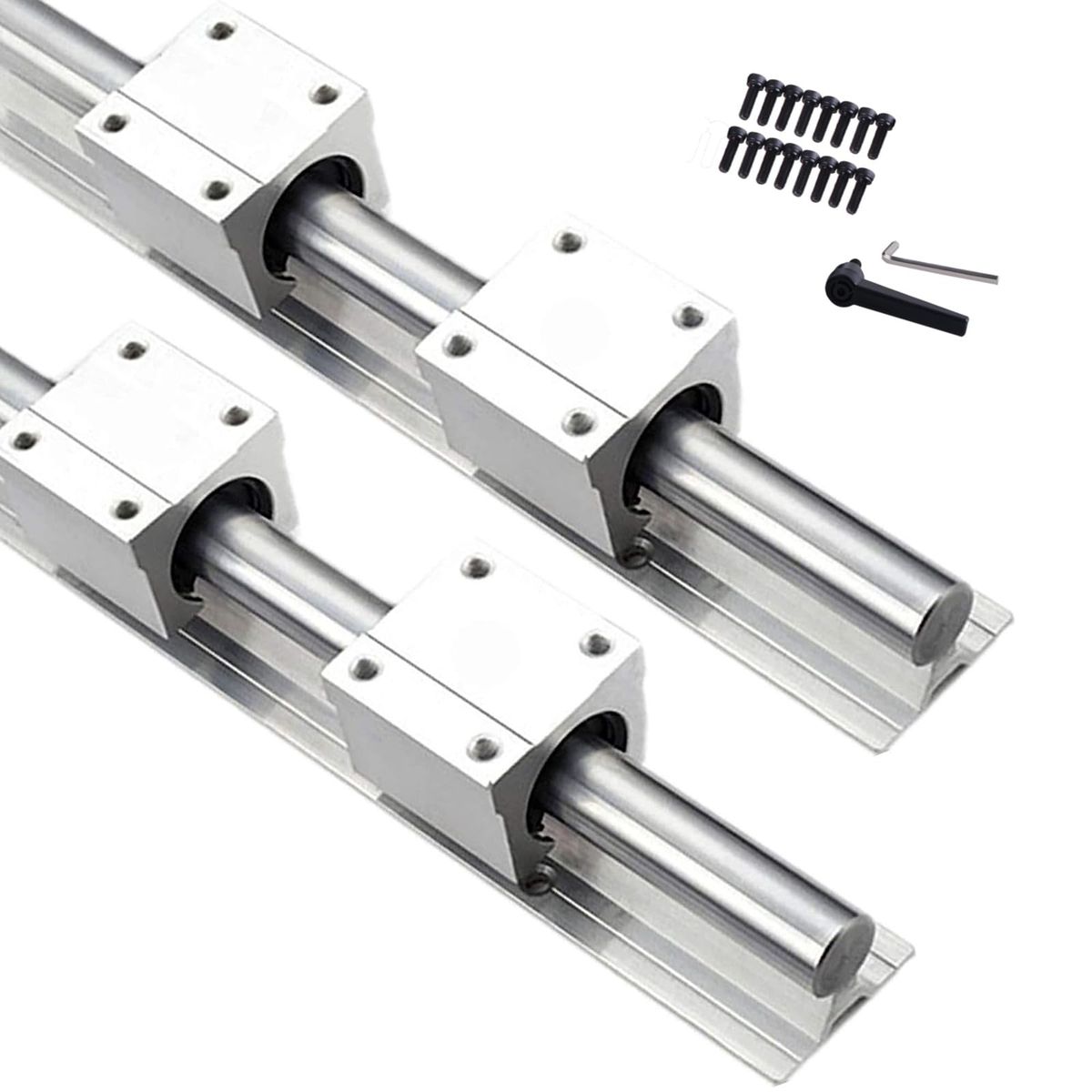

What Is a Linear Motion Guide?
A linear motion guide is a mechanical system designed to support and guide linear movement with high precision and stability.
A typical system includes:
- A hardened guide rail
- A moving carriage block
- Rolling elements such as steel balls or rollers
- Lubrication and sealing systems
These components work together to ensure smooth and efficient motion.
How Does a Linear Motion Guide Work?
The working principle of a linear motion guide is based on rolling contact rather than sliding friction.
Core Components
- Guide Rail: Provides a rigid and accurate motion path
- Carriage Block: Moves along the rail smoothly
- Rolling Elements: Reduce friction and support loads
- Seals: Protect against dust and contamination
- Lubrication System: Ensures long-term performance
Working Mechanism
As the carriage moves along the guide rail, rolling elements circulate inside the block, allowing smooth, precise, and low-resistance linear movement.
10 Key Benefits of Linear Motion Guide Systems
1. High Precision Motion
Ensures accurate positioning in industrial applications.
2. Low Friction Performance
Rolling elements significantly reduce resistance.
3. High Load Capacity
Supports both static and dynamic loads.
4. Smooth Operation
Reduces vibration and operational noise.
5. Long Service Life
Durable materials increase lifespan.
6. High Speed Capability
Suitable for fast automation systems.
7. Excellent Stability
Maintains alignment under load.
8. Easy Installation
Standardized design simplifies integration.
9. Wide Industrial Applications
Used across multiple industries.
10. Energy Efficiency
Reduced friction lowers power consumption.
Types of Linear Motion Guide
Different applications require different linear motion guide configurations.
Ball-Type Linear Motion Guide
- High speed and precision
- Common in CNC and automation systems
Roller-Type Linear Motion Guide
- Higher rigidity and load capacity
- Ideal for heavy-duty applications
Miniature Linear Motion Guide
- Compact design
- Used in medical and electronic devices
Heavy Duty Linear Motion Guide
- Designed for industrial environments
- Handles high loads and vibration
Applications of Linear Motion Guide
Linear motion guide systems are widely used in:
- CNC Machines – Precision cutting and machining
- Automation Systems – Repetitive motion control
- Robotics – Multi-axis movement systems
- Medical Equipment – Accurate and silent operation
- Semiconductor Equipment – Ultra-high precision applications
👉 Explore industrial motion solutions here:
https://yhlinear.com/product
How to Choose the Right Linear Motion Guide
Selecting the correct linear motion guide is critical for machine performance.
Load Requirements
Ensure the guide supports expected loads.
Precision Requirements
Select high-precision systems for accurate positioning.
Speed Requirements
Ensure compatibility with operating speed.
Environmental Conditions
Consider dust, humidity, and corrosion resistance.
Guide Size Compatibility
Match dimensions with machine structure.
For technical reference:
👉 https://www.hiwin.com/en/products/linear-guideways/
Installation Tips for Linear Motion Guide
Proper installation ensures long-term performance:
- Align guide rails accurately
- Tighten mounting bolts evenly
- Apply lubrication before operation
- Prevent contamination during installation
Maintenance Best Practices
To extend lifespan of linear motion guide systems:
- Lubricate regularly
- Clean rail surfaces
- Inspect for wear and damage
- Replace seals when necessary
Linear Motion Guide vs Traditional Sliding Systems
| Feature | Linear Motion Guide | Traditional Slide |
|---|---|---|
| Friction | Low | High |
| Precision | High | Medium |
| Load Capacity | High | Low |
| Lifespan | Long | Short |
Future Trends in Linear Motion Guide Technology
The development of linear motion guide systems includes:
- Smart monitoring sensors
- Advanced wear-resistant materials
- Industry 4.0 integration
- High-speed precision automation systems
FAQs About Linear Motion Guide
1. What is a linear motion guide used for?
It is used for smooth and precise linear movement in industrial machinery.
2. How does a linear motion guide reduce friction?
It uses rolling elements instead of sliding contact surfaces.
3. Can linear motion guides handle heavy loads?
Yes, especially roller-type and heavy-duty systems.
4. Do linear motion guides require maintenance?
Yes, regular lubrication and cleaning are necessary.
5. What industries use linear motion guides?
CNC machining, robotics, automation, and manufacturing industries.
6. Where can I buy high-quality linear motion guides?
You can explore reliable products here:
👉 https://yhlinear.com/product
Conclusion
A linear motion guide is an essential solution for precision linear movement, offering high accuracy, smooth operation, and long-term reliability. Whether used in CNC machinery, robotics, or industrial automation, it ensures efficient and stable performance.
