Introduction to Linear Guide With Motor

Modern automation relies on smooth, accurate motion, and nothing delivers that better than a linear guide with motor. This advanced motion module combines a rigid linear rail, a precision carriage, and a powerful motor into one complete system. By integrating the motor directly with the guide, engineers can achieve faster speeds, tighter control, and higher reliability than traditional mechanical setups. The keyword linear guide with motor also appears in this first paragraph exactly as required for strong search visibility and relevance.

What Is a Linear Guide With Motor

A linear guide with motor is a pre-assembled motion unit that includes:

• A precision linear rail

• A bearing block or carriage

• A motor (stepper, servo, or linear motor)

• A drive mechanism such as a ball screw, belt, or magnetic coil

• Optional encoder feedback for precise position control

Instead of building a motion axis from separate parts, this system provides an all-in-one solution where the guide and motor are permanently aligned and ready to use. This reduces installation difficulty and improves accuracy because the load rides on a smooth rail driven directly by the motorized mechanism.

Components in a Linear Guide With Motor

Typical components include:

Linear Rail

Hardened, precision-ground steel designed for smooth, stable movement.

Carriage / Bearing Block

Holds rolling elements that travel along the rail with minimal friction.

Drive Mechanism

Ball screw, belt, or linear motor depending on the application.

Motor

Stepper or servo for rotational drive, or a direct-drive linear motor.

End Support Units

Support the ball screw or belt systems.

Limit Sensors

Prevent over-travel and help with homing.

Encoder System

Provides feedback for accurate motor control.

Together, these parts create a robust motion platform capable of handling high loads, fast speeds, and precise movement.

How a Linear Guide With Motor Works

The linear guide with motor operates by combining a guiding mechanism with a motorized drive unit:

• The motor creates rotational or magnetic movement.

• That force transfers to the carriage through the screw, belt, or magnetic thrust.

• The carriage rolls along the rail using ball or roller bearings.

• Encoder feedback adjusts the motor to maintain precise position.

Because the guide and motor act as a single motion axis, the system produces consistent alignment, smooth motion, and reliable acceleration.

Benefits of Using a Linear Guide With Motor

A linear guide with motor offers several important advantages:

• High precision due to integrated alignment

• Low friction and smooth motion

• High speed and rapid acceleration

• Reduced installation time

• Long service life

• Lower vibration compared to pieced-together systems

• Compact design for limited spaces

This makes it ideal for automation equipment where repeatability and reliability matter.

Types of Linear Guide With Motor Systems

There are three main types of linear guide with motor designs:

Ball-Screw Type

• High thrust force

• Best accuracy

• Lower maximum speed

Belt-Driven Type

• Fast travel

• Long strokes

• Lower rigidity

Linear Motor Type

• No mechanical contact

• High speed and acceleration

• Zero backlash

Each system offers unique strength depending on the application.

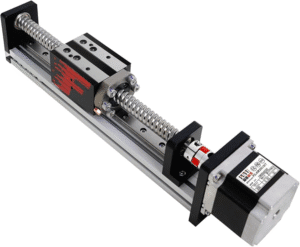

Ball-Screw Linear Guide With Motor

A ball-screw-driven linear guide with motor uses a servo or stepper motor to turn a screw. The nut converts rotation into linear motion.

Benefits include:

• Excellent repeatability

• High thrust capability

• Rigid structure for CNC machining

• Smooth, controlled motion

This type is used heavily in CNC routers, medical equipment, testing machines, and semiconductor tools.

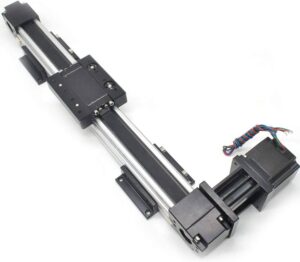

Belt-Driven Linear Guide With Motor

A belt-driven linear guide with motor uses a timing belt loop connected to a motor pulley.

Benefits:

• High speed

• Quiet operation

• Long travel distances

• Lower cost

It is commonly used in pick-and-place systems, 3D printers, and packaging machines.

Direct-Drive Linear Motor Linear Guide

This advanced design uses a magnetic coil and magnet track to create direct thrust.

Advantages:

• Ultra-high speed

• Zero backlash

• Exceptional smoothness

• No mechanical wear

• Low maintenance

This is the premium option for semiconductor manufacturing, laser machines, and high-precision robotics.

Linear Guide With Motor in CNC Machinery

CNC machines benefit greatly from integrating a linear guide with motor because:

• Motion becomes more stable

• Backlash is easier to control

• Accuracy increases

• Maintenance decreases

The motorized guide ensures reliable cutting, drilling, and milling even under heavy loads.

Linear Guide With Motor in Robotics

Robots use the system for:

• Pick-and-place arms

• Inspection stations

• High-speed sorting

• Automated assembly lines

Because the guide ensures stable alignment, robotic movement stays smooth and predictable.

Linear Guide With Motor for 3D Printing

Motorized guides improve 3D printer performance:

• Faster axis travel

• Higher printing accuracy

• Reduced vibration

• Consistent layer height

This helps deliver clean prints with fine detail.

Linear Guide With Motor in Packaging

Packaging machines rely on this system for:

• Carton forming

• High-speed pushing

• Conveyor indexing

• Labeling systems

The high repeatability helps increase throughput and reduce errors.

Key Features Engineers Look For

Engineers choosing a linear guide with motor typically evaluate:

• Load capacity

• Travel speed

• Repeatability

• Stroke length

• Motor type

• Encoder resolution

• Rigidity

• Environmental tolerance

Selecting the right features ensures stable long-term performance.

Load Capacity in Linear Guide With Motor

Load capacity depends on:

• Bearing block size

• Rolling element type

• Rail profile

• Motor thrust capability

Heavier applications require roller-type guides and stronger motors.

Speed Considerations

A linear guide with motor can move extremely fast, especially belt-driven or linear-motor systems. Engineers must balance speed with:

• Load weight

• Duty cycle

• Required accuracy

• Machine’s structural rigidity

Speed without stability can cause vibration and wear.

Repeatability and Accuracy

Precision depends on:

• Encoder resolution

• Guide quality

• Preload

• Motor tuning

• Surface finish of the rail

High-end systems achieve micrometer-level repeatability.

Motor Types Used in Linear Guide With Motor

Common motor choices include:

Stepper Motors

• Affordable

• Good control

• Ideal for light loads

Servo Motors

• High performance

• Fast and accurate

• Best for industrial applications

Linear Motors

• Cutting-edge performance

• Direct drive

• Zero mechanical backlash

Choosing the Right Linear Guide With Motor

When selecting a system:

• Identify your load

• Choose desired speed

• Determine travel length

• Select accuracy level

• Confirm environmental conditions

• Check compatibility with your controller

This ensures the machine performs as expected.

Installation Tips

To install properly:

• Mount rails to a flat surface

• Avoid twisting forces

• Use even torque on bolts

• Connect the motor to the controller carefully

• Test travel with low speed first

Proper installation avoids binding and vibration.

Lubrication Requirements

Lubrication keeps the bearings and rail moving smoothly. Options include:

• Grease fittings

• Oil lubrication

• Automatic lubricators

Frequency depends on speed and environment.

Maintenance for Long Life

Maintenance includes:

• Cleaning the rail

• Re-lubricating according to schedule

• Checking for dust on belts

• Inspecting electrical connections

• Listening for unusual noises

A well-maintained system lasts significantly longer.

Troubleshooting Operation Issues

These steps resolve most common problems.

Heavy-Duty Linear Guide With Motor

Heavy-duty versions use:

• Roller blocks

• High-thrust motors

• Extra-wide rails

• Reinforced carriages

These are used in industrial equipment such as CNC milling centers.

Miniature Linear Guide With Motor

Miniature systems are ideal for:

• Micro-robotics

• Sensors

• Small automation platforms

Their compact design enables precise movement in small spaces.

YH Linear Solutions for Linear Guide With Motor

YH Linear offers robust and precise components that can be paired with motorized solutions:

• High-precision linear guides

• Bearing blocks

• Custom motion modules

• OEM/ODM services

Their products support robotics, CNC, automation, packaging, and medical equipment.

Future Trends in Linear Guide With Motor Tech

Upcoming developments include:

• AI-assisted motor tuning

• IoT-enabled sensors

• Self-lubricating guides

• Magnetic levitation stages

• Energy-efficient motors

These advancements will continue improving speed, accuracy, and durability.

FAQs

How long does a linear guide with motor last?
With proper lubrication and maintenance, it can last millions of cycles.

Do I need a servo or stepper?
Servo for demanding accuracy, stepper for simpler loads.

Can I use a linear guide with motor in dusty areas?
Yes, with proper sealing and lubrication.

Is a linear motor better?
Yes for speed and precision, but more expensive.

What stroke lengths are available?
From short travel to several meters depending on design.

Conclusion

A linear guide with motor provides the stability, accuracy, and smooth motion modern automation requires. Whether used in CNC machines, robotics, 3D printers, packaging equipment, or advanced industrial systems, this integrated design offers long service life, high speed, and precision control. With proper installation and maintenance, the system becomes a reliable motion solution for any high-performance application.
