In modern industrial machinery, achieving smooth and accurate movement is essential for maximizing efficiency and maintaining product quality. A linear slide guide rail is a critical component that enables controlled linear motion with high precision, low friction, and excellent load-bearing capability.
From CNC machining centers and industrial automation systems to robotics and semiconductor manufacturing equipment, linear slide guide rail systems play a key role in delivering reliable performance and long service life.
This guide covers everything you need to know about linear slide guide rail systems, including their structure, benefits, applications, selection criteria, installation methods, and maintenance practices.

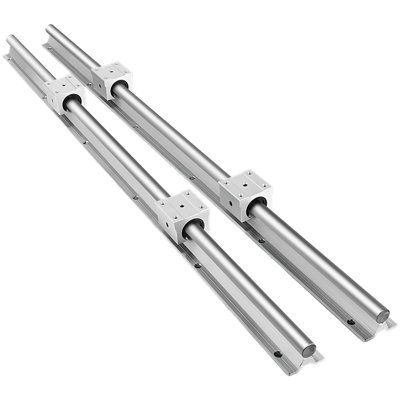

What Is a Linear Slide Guide Rail?
A linear slide guide rail is a mechanical motion system that guides movement along a straight path while minimizing friction and maintaining precise alignment.
A complete system generally includes:
- Precision guide rail
- Linear carriage block
- Recirculating ball bearings or rollers
- Lubrication channels
- End caps and seals
- Mounting hardware
The rolling contact between the carriage and rail allows for smooth movement while supporting substantial loads.
How Does a Linear Slide Guide Rail Work?
A linear slide guide rail operates through rolling elements that circulate inside the carriage block.
Guide Rail
The rail serves as the rigid foundation and movement path.
Carriage Block
The carriage travels along the rail while carrying the load.
Rolling Elements
Steel balls or rollers move within internal raceways.
These elements:
- Reduce friction
- Improve precision
- Support heavy loads
Lubrication System
Lubricants protect components and reduce wear.
Sealing Components
Seals prevent contaminants from entering the guide system.
The result is smooth, accurate, and repeatable linear motion.
12 Benefits of Using a Linear Slide Guide Rail
1. High Positioning Accuracy
Linear slide guide rail systems provide excellent motion precision.
2. Low Friction Movement
Rolling contact significantly reduces resistance.
3. High Load Capacity
Supports:
- Radial loads
- Axial loads
- Moment loads
4. Excellent Rigidity
Maintains alignment under demanding conditions.
5. Smooth Motion Performance
Reduces vibration and operating noise.
6. High-Speed Capability
Supports rapid acceleration and travel speeds.
7. Long Service Life
Precision-ground raceways increase durability.
8. Reduced Maintenance Costs
Efficient design minimizes wear.
9. Improved Energy Efficiency
Lower friction reduces power consumption.
10. Consistent Repeatability
Ideal for automation and manufacturing systems.
11. Flexible System Integration
Available in various sizes and configurations.
12. Reliable Industrial Operation
Performs consistently in demanding environments.
Types of Linear Slide Guide Rail Systems
Ball Bearing Linear Slide Guide Rail
These systems use recirculating steel balls.
Advantages
- High precision
- Low friction
- High speed
Applications
- CNC routers
- Packaging equipment
- Automated machinery
Roller Linear Slide Guide Rail
Roller systems utilize cylindrical rollers.
Advantages
- Greater rigidity
- Higher load capacity
- Better shock resistance
Applications
- Heavy machinery
- Industrial robotics
- Manufacturing equipment
Miniature Linear Slide Guide Rail
Compact systems for small devices.
Applications
- Medical equipment
- Electronics manufacturing
- Laboratory automation
Heavy Duty Linear Slide Guide Rail
Designed for demanding industrial applications.
Features
- Larger bearing circuits
- Enhanced load ratings
- Superior durability
Explore industrial guide rail solutions:
👉 https://yhlinear.com/product
Applications of Linear Slide Guide Rail Systems
CNC Machinery
Linear slide guide rail systems are widely used in:
- CNC milling machines
- CNC machining centers
- CNC lathes
- Grinding equipment
These systems help maintain machining accuracy and surface quality.
Industrial Automation
Applications include:
- Pick-and-place systems
- Packaging machinery
- Assembly lines
- Material handling equipment
Robotics
Robotic systems use guide rails for:
- Accurate positioning
- Smooth movement
- High repeatability
Semiconductor Manufacturing
Precision production requires:
Medical Equipment
Applications include:
- Imaging devices
- Diagnostic equipment
- Laboratory automation systems
How to Select the Right Linear Slide Guide Rail
Load Capacity
Calculate:
- Static loads
- Dynamic loads
- Shock loads
Select a system with an adequate safety margin.
Precision Requirements
Choose the correct accuracy grade.
| Precision Grade | Typical Application |
|---|---|
| Standard | General Automation |
| High | CNC Machinery |
| Precision | Semiconductor Equipment |
| Ultra Precision | Inspection Systems |
Travel Length
Longer travel distances may require:
- Larger rail profiles
- Multiple carriages
- Additional support
Operating Speed
Consider:
- Maximum speed
- Acceleration requirements
- Duty cycle
Environmental Conditions
Evaluate exposure to:
- Dust
- Moisture
- Coolants
- Chemicals
Protective seals and corrosion-resistant coatings may be required.
Installation Best Practices
Prepare Mounting Surfaces
Surfaces should be:
- Flat
- Clean
- Rigid
Ensure Proper Alignment
Misalignment may cause:
- Premature wear
- Reduced accuracy
- Increased friction
Use Proper Torque Values
Follow manufacturer installation recommendations.
Apply Lubrication Before Use
Initial lubrication helps maximize performance and lifespan.
Maintenance Tips for Linear Slide Guide Rail Systems
Routine maintenance improves reliability and longevity.
Recommended tasks include:
- Cleaning guide rails
- Inspecting carriage blocks
- Reapplying lubricant
- Checking fasteners
- Monitoring motion quality
Preventive maintenance helps minimize downtime.
Linear Slide Guide Rail vs Traditional Sliding Systems
| Feature | Linear Slide Guide Rail | Traditional Sliding System |
|---|---|---|
| Friction | Low | High |
| Precision | Excellent | Moderate |
| Speed | High | Limited |
| Load Capacity | High | Lower |
| Service Life | Long | Shorter |
Internal Links
Explore additional linear motion solutions:
Linear Motion Products
👉 https://yhlinear.com/product
Linear Guide Category
👉 https://yhlinear.com/product-category/linear-guide
YH Linear Homepage
For better SEO performance, link this article to related product pages featuring guide rails, bearing blocks, and linear motion components.
External Resources
For additional engineering references:
These industry leaders provide valuable technical resources related to guide rail systems and motion control technologies.
FAQs About Linear Slide Guide Rail Systems
What is a linear slide guide rail used for?
It provides precise and low-friction linear movement in CNC machines, robotics, automation systems, and industrial machinery.
How does a linear slide guide rail work?
It uses recirculating balls or rollers between a guide rail and carriage block to support movement and reduce friction.
What is the difference between ball and roller guide rails?
Ball guide rails offer lower friction and higher speed, while roller guide rails provide greater rigidity and load capacity.
Can linear slide guide rail systems handle heavy loads?
Yes. Heavy-duty models are specifically designed for demanding industrial applications.
Do linear slide guide rail systems require maintenance?
Regular cleaning and lubrication are recommended to maximize service life and maintain performance.
Where can I buy high-quality linear slide guide rail products?
Browse industrial-grade solutions here:
👉 https://yhlinear.com/product
Conclusion
A linear slide guide rail is one of the most important components in modern motion control systems. By providing smooth movement, high precision, excellent rigidity, and long-term reliability, these systems play a vital role in CNC machinery, robotics, industrial automation, semiconductor manufacturing, and medical equipment.
For premium-quality guide rails and motion control solutions, visit:
👉 https://yhlinear.com/product
You can also explore more guide rail options at:
👉 https://yhlinear.com/product-category/linear-guide
Choosing the right linear slide guide rail helps improve machine performance, increase productivity, and reduce maintenance costs, making it a valuable investment for virtually any precision motion application.
