In modern manufacturing and automation, accuracy is everything. Even the smallest positioning error can affect product quality, efficiency, and system performance. Precision linear bearings are engineered to solve this challenge by delivering ultra-smooth, accurate, and reliable linear motion in demanding industrial environments.

From CNC machining centers and robotic arms to semiconductor equipment and medical devices, precision linear bearings are essential components in any system that requires controlled movement with minimal friction and maximum accuracy.

This guide explains everything you need to know about precision linear bearings, including how they work, their benefits, types, applications, and selection tips.

What Are Precision Linear Bearings?

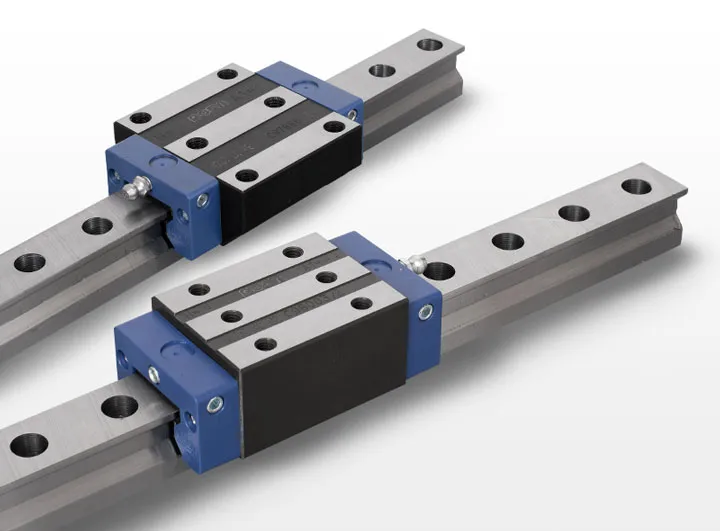

Precision linear bearings are motion control components designed to support smooth and accurate movement along a straight path using rolling elements such as steel balls or rollers.

A typical system includes:

• Precision-ground guide rail
• Bearing carriage (block)
• Recirculating ball bearings or rollers
• Lubrication system
• Seals and protective covers

Unlike traditional bushings or sliding systems, precision linear bearings use rolling contact, significantly reducing friction and wear.

How Do Precision Linear Bearings Work?

Precision linear bearings operate through a rolling motion mechanism between the rail and carriage.

Guide Rail

Provides a rigid and accurately machined track for movement.

Bearing Block

Moves along the rail while supporting loads and maintaining alignment.

Rolling Elements

Steel balls or rollers circulate within internal raceways.

They:

• Reduce friction
• Improve positioning accuracy
• Support heavy loads

Lubrication System

Ensures smooth operation and reduces wear over time.

Sealing System

Protects internal components from dust, debris, and moisture.

This combination allows for extremely precise and repeatable motion.

10 Key Advantages of Precision Linear Bearings

1. Ultra-High Accuracy

Precision linear bearings ensure extremely accurate positioning for demanding applications.

2. Low Friction Operation

Rolling contact dramatically reduces resistance compared to sliding systems.

3. Smooth Motion

Provides vibration-free, stable movement.

4. High Load Capacity

Supports:

• Radial loads
• Axial loads
• Moment loads

5. Excellent Rigidity

Maintains stability under high mechanical stress.

6. High-Speed Capability

Suitable for fast and continuous industrial operations.

7. Long Service Life

Hardened steel and precision machining increase durability.

8. Reduced Maintenance

Efficient design reduces wear and maintenance requirements.

9. Energy Efficiency

Low friction reduces power consumption.

10. Consistent Repeatability

Ensures stable performance in automated systems.

Types of Precision Linear Bearings

Ball Type Precision Linear Bearings

Uses recirculating steel balls.

Advantages

• Very low friction
• High speed
• Excellent accuracy

Applications

• CNC machines
• Laser cutting systems
• Automation equipment

Roller Type Precision Linear Bearings

Uses cylindrical rollers instead of balls.

Advantages

• Higher rigidity
• Greater load capacity
• Better shock resistance

Applications

• Heavy machinery
• Industrial robotics
• Large CNC systems

Miniature Precision Linear Bearings

Compact bearings for small-scale systems.

Applications

• Medical devices
• Laboratory equipment
• Electronics manufacturing

Heavy Duty Precision Linear Bearings

Designed for industrial-grade applications.

Features

• Higher load ratings
• Reinforced structure
• Enhanced durability

Explore industrial solutions:

👉 https://yhlinear.com/product

Applications of Precision Linear Bearings

CNC Machinery

Precision linear bearings are widely used in:

• CNC milling machines
• CNC lathes
• CNC routers
• Grinding machines

They ensure accurate tool positioning and smooth axis movement.

Industrial Automation

Used in systems such as:

• Pick-and-place machines
• Assembly lines
• Packaging equipment
• Material handling systems

Robotics

Robotic systems rely on precision linear bearings for:

• Accurate positioning
• Smooth motion
• High repeatability

Semiconductor Manufacturing

Applications require:

• Ultra-high precision
• Minimal vibration
• Stable operation

Medical Equipment

Used in:

• Imaging systems
• Diagnostic devices
• Laboratory automation

How to Choose Precision Linear Bearings

Load Requirements

Evaluate:

• Static load
• Dynamic load
• Shock load

Always include a safety margin.

Accuracy Requirements

Choose based on application:

Speed Requirements

Consider:

• Maximum travel speed
• Acceleration rate
• Duty cycle

Environmental Conditions

Assess exposure to:

• Dust
• Moisture
• Coolants
• Chemicals

Sealed versions may be required.

Installation Space

Ensure proper fit within machine design constraints.

Installation Best Practices

Ensure Flat Mounting Surfaces

Flat surfaces improve accuracy and reduce stress.

Align Rails Properly

Misalignment can cause:

• Reduced precision
• Increased wear
• Higher friction

Use Correct Torque

Follow manufacturer specifications.

Apply Lubrication Before Operation

Ensures smooth startup and long-term performance.

Maintenance Tips for Precision Linear Bearings

Regular maintenance improves performance and lifespan:

• Clean rail surfaces regularly
• Reapply lubrication
• Inspect seals and blocks
• Check mounting bolts
• Monitor motion quality

Preventive maintenance reduces downtime and repair costs.

Precision Linear Bearings vs Standard Bearings

Internal Links

Explore more linear motion solutions:

Linear Motion Products

👉 https://yhlinear.com/product

Linear Guide Category

👉 https://yhlinear.com/product-category/linear-guide

Homepage

👉 https://yhlinear.com/

These internal links help users explore compatible guide rails, bearing blocks, and motion systems.

External Resources

For additional technical references:

👉 https://www.thk.com

👉 https://www.hiwin.com

These manufacturers provide detailed engineering documentation on precision linear motion systems.

FAQs About Precision Linear Bearings

What are precision linear bearings used for?

They are used for high-accuracy linear motion in CNC machines, robotics, automation systems, and industrial equipment.

How do precision linear bearings work?

They use rolling elements such as balls or rollers between a rail and carriage to reduce friction and improve accuracy.

Are precision linear bearings suitable for heavy loads?

Yes. Heavy-duty versions are designed for industrial load requirements.

Do precision linear bearings require maintenance?

Yes. Regular lubrication and cleaning are required for optimal performance.

What industries use precision linear bearings?

CNC machining, robotics, semiconductor manufacturing, medical devices, and industrial automation.

Where can I buy precision linear bearings?

Explore professional products here:

👉 https://yhlinear.com/product

Conclusion

Precision linear bearings are essential components in modern motion control systems. Their ability to deliver high accuracy, smooth motion, and reliable performance makes them indispensable in CNC machinery, robotics, automation, and advanced manufacturing.

For high-quality linear motion solutions and industrial engineering support, visit:

👉 https://yhlinear.com/product

Choosing the right precision linear bearings ensures improved machine performance, higher productivity, and long-term operational stability.
